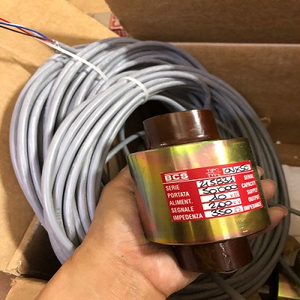

BCS CXX-1.5/B

BCS Italy Vietnam Type CXX-1.5/B
BCS compression load cells BCS
– rated load: 1500 Kg;
– accuracy class: ± 0.1% of rated load;
– nominal impedance: 350 ohm;
– sensitivity: 2.00 mV/V;
– shielded cable, 5 m long;
BCS Italy Vietnam Type OP9
Signal conditioning boards
– 7-segments LED display, 8 mms high, red;
– stabilized power supply unit, 5 V DC, for the load cells;
– programmable output, ÷20 or 4÷20 mA;
– “fail-safe” alarm with SPST relay, 2 A;
– power supply: 220 V – 50/60 Hz;
– aluminium box, IP55 protection,
NOTE: board type OP9 is replacing the old model AT98
