Hãy cung cấp thông tin về bất cứ sản phẩm bạn đang cần, chúng tôi bảo đảm về chất lượng, dịch vụ và giá cả tổt nhất.
Hãy liên hệ với chúng tôi để có giá tốt nhất.
0938.214.498 |Mr Cảnh|
Công ty chúng tôi là đại diện phân phối của hãng CSF các sản phẩm sau:

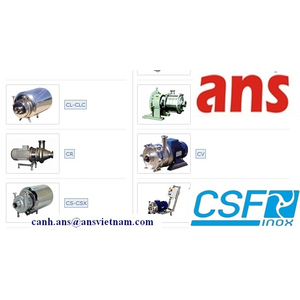

Bơm CSF inox spa

Các máy bơm ly tâm CSF INOX SPA được xây dựng trong một phạm vi rất rộng các mô hình, với bánh công tác đóng và mở. Dự định sẽ được sử dụng trong các lĩnh vực: thực phẩm, dược phẩm, hóa chất và xử lý nước. Mô đun tối đa các thành phần. Tất cả các bộ phận tiếp xúc với các sản phẩm phải được bơm được xây dựng trong AISI 316 và / hoặc AISI 316L thép không gỉ.


Bơm CSF Vietnam Code: KMIE0
CSF PROGRESSIVE CAVITY PUMP
MIE 50-2/IA.LT33
G25 UNI5007
Bơm CSF Vietnam Code: KMIE0
PROGRESSIVE CAVITY PUMP
MIE 80-2/IA.LT33
G25 UNI5007

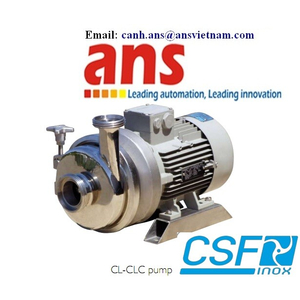

Bơm ly tâm CSF Vietnam

KCC41
CENTRIFUGAL PUMP
Replaced by: CLC 41-2-1.5/BM.T82

CSF CODE:   UNITEN 3 X7X7KZ7(82) ELECTRIC MOTOR:

"WEG" IE2 IP55 CL.F ROTATION SPEED: 2900 RPM(50HZ) MOTOR POWER:1.1 KW
MOTOR VOLTAGE: 230/400V D/Y(STD)  ±5%
(Model: CLC-40-2-1.5/A.NT82)
Bơm CSF Vietnam WMIB034A02T
MISCELATORE TN.F. M34 CON TAPPO+TERM.304
AISI 304 / 1.4301(EN10088-1)
S/W MIXER M34+THERMOM+END PLUG, 3/4"GAS
Bơm CSF Vietnam WMIO000O07C
PISTOLA+PORTAG. RB65  M 34  G.1/2"FEM/20
GETTO REGOLABILE
Composite
SPRAY GUN RB65 G.1/2" BRASS+RUBB+CONN
CSF Vietnam WMIO000A50
AVVOLGITUBO INOX AV 1200 304
PER 13MT TUBO 3/4" -  8MT 1"
Composite
HOSE REEL AV1200 IN STAINLESS STEEL
CSF Vietnam WMIO034G08
TUBO VAP. BLU ALIM. 19X31 ( X RACC.3/4")
Composite
STEAM HOSE 3/4" - 120°C MAX
CSF Vietnam WMIO000A60
AVVOLGITUBO INOX AV 3501 304
X 20MT TUBO  3/4" - 12MT 1"
Composite
S.S. HOSE REEL AV3501            X 20MT.3/4
(Swivel bracket for Hose reel AV1200 - Aisi 304)
CSF Vietnam WMIO999A07
SELLA REGGIT. M34-114 304 M388*
AISI 304 / 1.4301(EN10088-1)
HOSE HANGER M34-114 - 304
(Hose hanger - S.steel AISI 304)
CSF Vietnam WMIO000A40
TUBO ALIM.BLU M.3 COLLEG.MISCEL./AVVOLG. CON RACCORDI D.3/4" - X M34
CSF Vietnam &WMIB034/KITV
KIT M34 POMOLO VAPORE
Composite
KIT, GASKET - STEAM KNOB M34
CSF Vietnam WMIO000A50
AVVOLGITUBO INOX AV 1200 304
PER 13MT TUBO 3/4" -  8MT 1"
Composite
HOSE REEL AV1200 IN STAINLESS STEEL
CSF Vietnam WMIO000A60
AVVOLGITUBO INOX AV 3501 304
X 20MT TUBO  3/4" - 12MT 1"
Composite
S.S. HOSE REEL AV3501            X 20MT.3/4
CSF Vietnam WMIO000A70
AVVOLGITUBO INOX AV 5000 304
PER 30MT TUBO 3/4" - 25MT 1"
Composite
S.S. HOSE REEL AV3501            X 20MT.3/4
Bơm ly tâm CSF Vietnam Model: CL 32-2-2/BD.12T82
CENTRIFUGAL PUMP
Model: CL 32-2-2/BD.12T82
Mat.: AISI 316
Bơm ly tâm CSF Vietnam KCS65
CENTRIFUGAL PUMP
CS 65-260-2-30/BM.16PT82
AISI 316L
Bơm ly tâm CSF Vietnam KCX80
CENTRIFUGAL PUMP
CSX 80-260-2-40/BM.24PT82
AISI 316L
Bơm ly tâm CSF Vietnam KCS40
CENTRIFUGAL PUMP
CS 40-175-2-5.5/BM.68T82
AISI 316L
Bơm ly tâm CSF Vietnam KCS50
CENTRIFUGAL PUMP
CS 50-175-2-7.5/BM.61T82
AISI 316L
Bơm ly tâm CSF Vietnam KCS40
CENTRIFUGAL PUMP
CS 40-210-2-10/BM.87T82
Bơm ly tâm CSF Vietnam KCS50
CENTRIFUGAL PUMP
CS 50-210-2-15/BM.04T82
Bơm CSF Vietnam KMAE0
PROGRESSIVE CAVITY PUMP
MAE 70-L/AA.ET32
Bơm CSF Vietnam KMAE0
PROGRESSIVE CAVITY PUMP
MAE 65-1/AA.ET32
Bơm CSF Vietnam KMAE0
PROGRESSIVE CAVITY PUMP
MAE 50-1/AA.T32
Bơm CSF Vietnam KCS50
CENTRIFUGAL PUMP
CS 50-210-2-10/BM.82PW82
Bơm CSF Vietnam KMAN0
PROGRESSIVE CAVITY PUMP
MAN 80-1/AA.ET32
Bơm CSF Vietnam 1U28PFRZ7S
PARTE FISSA UNIT2 Z7 D28SR +SPINA
EPDM
STAT. SEAL U2 CA/EPDM d.28, SLOT  Rif. 007
Bơm CSF Vietnam 1U28PR3.X7K
PARTE ROTANT.UNIT3 X7X7K 28DES
Composite
ROT. SEAL U3 EPDM/SC d.28R  Rif. 007
Bơm CSF Vietnam RAAGM215F
O-RING  215    EPDM-E70Q FDA-3A-USP
139,7 X 5,34
EPDM / .
O-RING 215 FDA/3A/USP VI  Rif. 018
Bơm CSF Vietnam RAAGM2112F
O-RING  2112 EPDM-E70Q  FDA-3A-USP
. 28,3X1,78
EPDM / .
O-RING 2112 FDA/3A/USP VI  Rif. 062
Bơm CSF Vietnam SPARES PARTS FOR PUMP C070914:
Bơm CSF Vietnam 1U43D.EHC3Z7
TENUTA UNIT.EHC  X73Z7.X77    43DES+SPINA
Composite
SNG SEAL EHC TCB/CA/EPDM d.43R, SLOT  Rif. 007
Bơm CSF Vietnam RAAGM6795F
O-RING  6795 EPDM-E70Q FDA-3A-USP
. 202,56 X 5,34
EPDM
O-RING 6795 FDA/3A/USP VI  Rif. 018
Bơm CSF Vietnam RAAGM2150F
O-RING  2150 EPDM-E70Q  FDA-3A-USP
. D.37,82 X 1,78
EPDM / .O-RING 2150 FDA/3A/USP VI  Rif. 062
Bơm CSF Vietnam PARTS FOR PUMP WITH S/N C071142:
Bơm CSF Vietnam 1U28PFRZ7S
PARTE FISSA UNIT2 Z7 D28SR +SPINA
EPDM
STAT. SEAL U2 CA/EPDM d.28, SLOT  Rif. 007
Bơm CSF Vietnam 1U28PR3.X7K
PARTE ROTANT.UNIT3 X7X7K 28DES
Composite
ROT. SEAL U3 EPDM/SC d.28R  Rif. 007
Bơm CSF Vietnam RAAGM215F
O-RING  215    EPDM-E70Q FDA-3A-USP
139,7 X 5,34
EPDM / .
O-RING 215 FDA/3A/USP VI  Rif. 018
Bơm CSF Vietnam RAAGM2112F
O-RING  2112 EPDM-E70Q  FDA-3A-USP
. 28,3X1,78
EPDM / .
O-RING 2112 FDA/3A/USP VI  Rif. 062
Bơm CSF Vietnam

PARTS FOR PUMP WITH S/N C070915:

1U43D.EHC3Z7
TENUTA UNIT.EHC  X73Z7.X77    43DES+SPINA
Composite
SNG SEAL EHC TCB/CA/EPDM d.43R, SLOT  Rif. 007

RAAGM6995F
O-RING  6995 EPDM-E70Q FDA-3A-USP
. 253,36X5,34
EPDM
O-RING 6995 FDA/3A/USP VI  Rif. 018

RAAGM2150F
O-RING  2150 EPDM-E70Q  FDA-3A-USP
. D.37,82 X 1,78
EPDM / .
O-RING 2150 FDA/3A/USP VI  Rif. 062

PARTS FOR PUMP WITH S/N C070859:

1U43PF.37S
PARTE FISSA UNIT2 37 D43+SPINA
Composite
STAT. SEAL U2 TCB/EPDM d.43, SLOT  Rif. 007

1U43PR2H.7DK
PARTE ROTAN. UNIT2H XX7DK 43DES
Composite
ROT. SEAL U2H EPDM/SC d.43R  Rif. 007

RAAGM6995F
O-RING  6995 EPDM-E70Q FDA-3A-USP
. 253,36X5,34
EPDM
O-RING 6995 FDA/3A/USP VI  Rif. 018

RAAGM2150F
O-RING  2150 EPDM-E70Q  FDA-3A-USP
. D.37,82 X 1,78
EPDM / .
O-RING 2150 FDA/3A/USP VI  Rif. 06

PARTS FOR PUMP WITH S/N C071291:

1U28PFRZ7S
PARTE FISSA UNIT2 Z7 D28SR +SPINA
EPDM
STAT. SEAL U2 CA/EPDM d.28, SLOT  Rif. 007

1U28PR3.X7K
PARTE ROTANT.UNIT3 X7X7K 28DES
Composite
ROT. SEAL U3 EPDM/SC d.28R  Rif. 007

RAAGM6670F
O-RING  6670 EPDM-E70Q FDA-3A-USP
. 170,82 X 5,34
EPDM / .
O-RING 6670 FDA/3A/USP VI  Rif. 018

RAAGM2112F
O-RING  2112 EPDM-E70Q  FDA-3A-USP
. 28,3X1,78
EPDM / .
O-RING 2112 FDA/3A/USP VI  Rif. 062

PARTS FOR PUMP WITH S/N C074456:

1U28PFRZ7S
PARTE FISSA UNIT2 Z7 D28SR +SPINA
EPDM
STAT. SEAL U2 CA/EPDM d.28, SLOT  Rif. 007

1U28PR3.X7K
PARTE ROTANT.UNIT3 X7X7K 28DES
Composite
ROT. SEAL U3 EPDM/SC d.28R  Rif. 007

RAAGM215F
O-RING  215    EPDM-E70Q FDA-3A-USP
139,7 X 5,34
EPDM / .
O-RING 215 FDA/3A/USP VI  Rif. 018

RAAGM2112F
O-RING  2112 EPDM-E70Q  FDA-3A-USP
. 28,3X1,78
EPDM / .
O-RING 2112 FDA/3A/USP VI  Rif. 062
Bơm CSF Vietnam

PARTS FOR PUMP WITH S/N C070915:

1U43D.EHC3Z7
TENUTA UNIT.EHC  X73Z7.X77    43DES+SPINA
Composite
SNG SEAL EHC TCB/CA/EPDM d.43R, SLOT  Rif. 007

RAAGM6995F
O-RING  6995 EPDM-E70Q FDA-3A-USP
. 253,36X5,34
EPDM
O-RING 6995 FDA/3A/USP VI  Rif. 018

RAAGM2150F
O-RING  2150 EPDM-E70Q  FDA-3A-USP
. D.37,82 X 1,78
EPDM / .
O-RING 2150 FDA/3A/USP VI  Rif. 062

PARTS FOR PUMP WITH S/N C070859:

1U43PF.37S
PARTE FISSA UNIT2 37 D43+SPINA
Composite
STAT. SEAL U2 TCB/EPDM d.43, SLOT  Rif. 007

1U43PR2H.7DK
PARTE ROTAN. UNIT2H XX7DK 43DES
Composite
ROT. SEAL U2H EPDM/SC d.43R  Rif. 007

RAAGM6995F
O-RING  6995 EPDM-E70Q FDA-3A-USP
. 253,36X5,34
EPDM
O-RING 6995 FDA/3A/USP VI  Rif. 018

RAAGM2150F
O-RING  2150 EPDM-E70Q  FDA-3A-USP
. D.37,82 X 1,78
EPDM / .
O-RING 2150 FDA/3A/USP VI  Rif. 06

PARTS FOR PUMP WITH S/N C071291:

1U28PFRZ7S
PARTE FISSA UNIT2 Z7 D28SR +SPINA
EPDM
STAT. SEAL U2 CA/EPDM d.28, SLOT  Rif. 007

1U28PR3.X7K
PARTE ROTANT.UNIT3 X7X7K 28DES
Composite
ROT. SEAL U3 EPDM/SC d.28R  Rif. 007

RAAGM6670F
O-RING  6670 EPDM-E70Q FDA-3A-USP
. 170,82 X 5,34
EPDM / .
O-RING 6670 FDA/3A/USP VI  Rif. 018

RAAGM2112F
O-RING  2112 EPDM-E70Q  FDA-3A-USP
. 28,3X1,78
EPDM / .
O-RING 2112 FDA/3A/USP VI  Rif. 062

PARTS FOR PUMP WITH S/N C074456:

1U28PFRZ7S
PARTE FISSA UNIT2 Z7 D28SR +SPINA
EPDM
STAT. SEAL U2 CA/EPDM d.28, SLOT  Rif. 007

1U28PR3.X7K
PARTE ROTANT.UNIT3 X7X7K 28DES
Composite
ROT. SEAL U3 EPDM/SC d.28R  Rif. 007

RAAGM215F
O-RING  215    EPDM-E70Q FDA-3A-USP
139,7 X 5,34
EPDM / .
O-RING 215 FDA/3A/USP VI  Rif. 018

RAAGM2112F
O-RING  2112 EPDM-E70Q  FDA-3A-USP
. 28,3X1,78
EPDM / .
O-RING 2112 FDA/3A/USP VI  Rif. 062
Bơm CSF Vietnam

Correct: TADGA0008
STATORE M80-1  MO991  (N1)
. FOOD GRADE
NBR SPP841 / NBR SPP841
STATOR, M80/1 FOOD
5kg / pc
(M80 – 1 (CSF code: TADGA008))

Correct: TADGA0009
STATORE M80-2  MO974  (N1)
. FOOD GRADE
NBR SPP841 / NBR SPP841
STATOR, M80/2 FOOD
5kg /pc
(M80 – 2 (CSF code: TADGA009))

KCC41
CENTRIFUGAL PUMP
Correct: CLC 41-2-4/BM.PT82
Unit weight: 40 kg / pc
Length: 0.5 m
AISI 316
TECHNICAL FEATURES
MOUNTING ARRANGEMENT:                                    WITH MOTOR+FEET MOTOR SHROUD:                                                            INCLUDED
INLET PORT:                                                                      DN50 DIN11851 THREAD MALE
OUTLET PORT:                                                                  DN40 DIN11851 THREAD MALE PUMP MATERIAL:                                                           AISI 316-1.4401-CF8M
PUMP ELASTOMERS:                                                     EPDM IMPELLER:
FULL CLOSED:   ø 153
MECHANICAL SEAL                                                        SINGLE INTERNAL MECHANICAL SEAL TYPE:
CONTACT FACES:   SIC/CARBON
ELASTOMERS:   EPDM
CSF CODE:   UNITEN 3 X7X7KZ7(82) ELECTRIC MOTOR:                                                         "BRONZONI" IE2 IP55, CL.F ROTATION SPEED:                                                         2900 RPM(50HZ)
MOTOR POWER:                                                              3 KW
MOTOR VOLTAGE:                                                          230/400V D/Y(STD)  ±5%
DOCUMENTS ATTACHED:
INSTRUCTIONS FOR INSTALLATION   DOCICL
SECTIONAL DRAWING WITH PART LIST   DOCA2773
(CLC 41-2-3/BM.PT82)

Correct: KBB33
LOBE PUMP BB330-3200U
Unit weight: 65 kg
Length: 0.5 m
TECHNICAL FEATURES
INLET PORT:                                                                      DN80 DIN 11851 MALE THREAD OUTLET PORT:                                                                  DN80 DIN 11851 MALE THREAD PUMP MATERIAL:
CASING:   INOX AISI 316L
ROTORS:   INOX AISI 316L PUMP ELASTOMERS:                                                     EPDM MECHANICAL SEAL TYPE                                           SIMPLE MECHANICAL SEAL
CONTACT FACES:   S.S.316L/CARBON
ELASTOMERS:   EPDM ROTORS:                                                                              TRILOBE ST END-COVER:                                                                      STANDARD
COUPLING:                                                                         BARE SHAFT PUMP
SHAFT PUMP POSITION:   LOW
PORTS POSITION:   HORIZONTAL
DOCUMENTS ATTACHED:
INSTRUCTIONS FOR INSTALLATION   DOCIBB
(Yogurt pump BB330 3200)
