ANH NGHI SƠN LÀ ĐẠI LÝ PHÂN PHỐI UNIPULSE VIETNAM
Xuất xứ: Unipulse
Listcode: Unipulse Vietnam
Loadcells
Product list
Load cells are sensors used to measure weight or force, available in capacity ranging from 100g (1N) to 100ton (1MN) or even above.
Load cells are normally connected to digital indicators for practical use.
USB58
High Accuracy Tension / Compression Type Loadcell
* Capacity 200 N / 500 N
* Accuracy 1/10000 (Non-linearity, Hysteresis, Repeatability)
* High input impedance: 1050Ω
* Usage: Applications in fields that require high accuracy such as calibration of testing units, in-house standard devices, etc.
* Accuracy 1/10000 (Non-linearity, Hysteresis, Repeatability)
* High input impedance: 1050Ω
* Usage: Applications in fields that require high accuracy such as calibration of testing units, in-house standard devices, etc.
UNCDW
Compact Compression Type Loadcell
* Capacity 200 N / 500 N
* Construction material: Stainless steel
* Ultra-compact compression type loadcell with a diameter of 7 mm and a height of 5 mm
* Construction material: Stainless steel
* Ultra-compact compression type loadcell with a diameter of 7 mm and a height of 5 mm

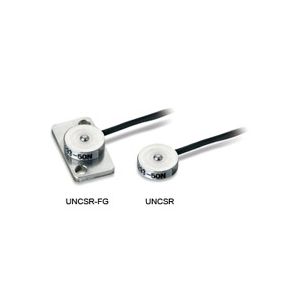

UNCSR
Compact Compression Type Loadcell
* Capacity 5 N / 10 N / 20 N / 50 N
* Construction material: Aluminum (5 N / 10 N), Stainless steel (20 N / 50 N)
* Ultra-compact compression type loadcell with a diameter of 12 mm and a height of 4 mm
* UNCSR-FG: W/ plate for screw fastening
* Construction material: Aluminum (5 N / 10 N), Stainless steel (20 N / 50 N)
* Ultra-compact compression type loadcell with a diameter of 12 mm and a height of 4 mm
* UNCSR-FG: W/ plate for screw fastening
UNLRS
Compact Compression Type Loadcell
* Capacity 100 N / 200 N
* Construction material：stainless steel
* Compact compression type loadcell with a diameter of 20 mm and a height of 9.5 mm
* UNLRS-FG: W/ plate for screw fastening
* Construction material：stainless steel
* Compact compression type loadcell with a diameter of 20 mm and a height of 9.5 mm
* UNLRS-FG: W/ plate for screw fastening
UNLS
Compact Compression Type Loadcell
* Capacity 500 N to 5 kN
* Construction material: Stainless steel
* Compact compression type loadcell with a diameter of 21 mm and a height of 10 mm
* UNLS-FG: W/ plate for screw fastening
* Construction material: Stainless steel
* Compact compression type loadcell with a diameter of 21 mm and a height of 10 mm
* UNLS-FG: W/ plate for screw fastening
UNMR
Compact Compression Type Loadcell
* Capacity 10 / 20kN
* Construction material: Stainless steel
* Compact compression type loadcell with a diameter of 21 mm and a height of 10 mm
* Construction material: Stainless steel
* Compact compression type loadcell with a diameter of 21 mm and a height of 10 mm
UNBF
Compression Type Loadcell
* Capacity 300 N to 500 kN
* Stainless steel
* Compact and thin design allows easy mounting on existing equipment.
* Stainless steel
* Compact and thin design allows easy mounting on existing equipment.
UNGS
Compression Type Loadcell
* Capacity 1 kN / 2 kN / 5 kN / 10 kN / 20 kN
* Construction material: Stainless steel
* Compact size and low capacity allows for wide use.
* Construction material: Stainless steel
* Compact size and low capacity allows for wide use.
UNTCH
Press Fitting Loadcell
* Capacity 5 kN to 100 kN
* Construction material: Special alloy steel
* Most appropriate for load control of press fitting, caulking, etc.
* Construction material: Special alloy steel
* Most appropriate for load control of press fitting, caulking, etc.
UNCLB
Tension / Compression Type Loadcell
* Capacity 500 N to 5 kN
* Construction material:
Aluminum (500N/1kN),
Stainless steel (2kN/5kN)
* Compact and lightweight easy-to-use loadcell for both tension and compression applications
* Construction material:
Aluminum (500N/1kN),
Stainless steel (2kN/5kN)
* Compact and lightweight easy-to-use loadcell for both tension and compression applications
RSCC
Tension Type Loadcell
* Capacity 50 / 100 / 200 / 500kg / 1 / 2 / 5t
* Constructed of stainless steel, Lightweight
* Applications: Crane scales, tank scales, etc.
* Constructed of stainless steel, Lightweight
* Applications: Crane scales, tank scales, etc.
RSCM
Tension Type Loadcell
* Capacity 50 kN
* Constructed of stainless steel, Lightweight
* Combination adjustment for use with multiple units or recalibration at time of replacement is not required.
* Applications: Crane scales, tank scales, etc.
* Constructed of stainless steel, Lightweight
* Combination adjustment for use with multiple units or recalibration at time of replacement is not required.
* Applications: Crane scales, tank scales, etc.
HLCB1
Beam Type Loadcell
* Capacity 220, 550, 1100, 1760kg, 2t, 4.4t
* High accuracy, constructed of stainless steel, hermetically sealed
* Applications: Platform scales, tank scales, etc.
* High accuracy, constructed of stainless steel, hermetically sealed
* Applications: Platform scales, tank scales, etc.
SB14
Beam Type Loadcell
* Capacity 2.5 kN / 5 kN / 12 kN / 25 kN / 50 kN
* High accuracy, constructed of stainless steel, hermetically sealed
* High input impedance: 1100Ω
* Applications: Platform scales, hopper scales, etc.
* High accuracy, constructed of stainless steel, hermetically sealed
* High input impedance: 1100Ω
* Applications: Platform scales, hopper scales, etc.
Z6FC3&Z6FD1
Beam Type Loadcell
* Capacity 5 kg / 10 kg / 20 kg / 50 kg / 100 kg / 200 kg
* High accuracy, constructed of stainless steel, hermetically sealed
* Stainless steel bellows that eliminate disturbance
* Applications: Hopper scales, conveyor scales, etc.
* High accuracy, constructed of stainless steel, hermetically sealed
* Stainless steel bellows that eliminate disturbance
* Applications: Hopper scales, conveyor scales, etc.
PC22
Single Point Type Loadcell
* Capacity 5 kg / 10 kg / 20 kg / 30 kg / 40 kg
* Constructed of Aluminum, Lightweight
* Applications：Bench scales, etc.
* Constructed of Aluminum, Lightweight
* Applications：Bench scales, etc.
PC46
Single Point Type Loadcell
* Capacity 50 kg /100 kg / 150 kg / 200 kg / 250 kg
* Constructed of Aluminum, Lightweight
* Applications：Bench scales、Floor scales, conveyor scales, etc.
* Constructed of Aluminum, Lightweight
* Applications：Bench scales、Floor scales, conveyor scales, etc.
PC6
Single Point Type Loadcell
* Capacity 10 kg / 20 kg / 50 kg / 100 kg / 200 kg
* Constructed of stainless steel, Lightweight
* Hermetically sealed
* Applications：Bench scales、Floor scales, conveyor scales, etc.
* Constructed of stainless steel, Lightweight
* Hermetically sealed
* Applications：Bench scales、Floor scales, conveyor scales, etc.
PW4M
Single Point Type Loadcell
* Capacity 300g / 500g / 1kg / 2kg / 3kg
* Constructed of Aluminum, Lightweight
* Most appropriate for load control of bench scales, floor scales, conveyor scales, etc.
* Constructed of Aluminum, Lightweight
* Most appropriate for load control of bench scales, floor scales, conveyor scales, etc.
PW6C
Single Point Type Loadcell
* Capacity 5 / 10 / 20 / 30 / 40kg
* Constructed of Aluminum, Lightweight
* Most appropriate for load control of bench scales, etc.
* Constructed of Aluminum, Lightweight
* Most appropriate for load control of bench scales, etc.
PW10A
Single Point Type Loadcell
* Capacity 50 / 100 / 150 / 200 / 250 / 300kg
* Constructed of Aluminum, Lightweight
* Most appropriate for load control of bench scales, floor scales, conveyor scales, etc.
* Constructed of Aluminum, Lightweight
* Most appropriate for load control of bench scales, floor scales, conveyor scales, etc.
PW15A
Single Point Type Loadcell
*Capacity 10 / 20 / 50 / 100kg
* Constructed of stainless steel, Lightweight
* Most appropriate for load control of bench scales, floor scales, conveyor scales, etc.
* Constructed of stainless steel, Lightweight
* Most appropriate for load control of bench scales, floor scales, conveyor scales, etc.
USC
Single Point Type Loadcell
* High accuracy, constructed of stainless steel, hermetically sealed
* High input impedance: 1100Ω
* Applications: Platform scales, etc.
