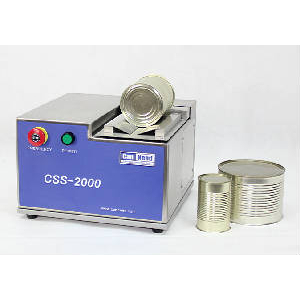

CSS 2000 Seam Saw
Canneed CSS 2000 - canneed Vietnam - Máy kiểm tra Cưa đường may CSS 2000
The CanNeed CSS-2000 Seam Saw is applicable for all types of cans of 45-260mm. The movable cutting platform is installed on the linear guide.
The CanNeed “CSS-2000 Seam saw” is a special seam circular saw with double cut for double seam inspections. The CSS-2000 was specially designed for 2- and 3-piece cans.The nitrated blades achieve together with the speed of approx. 1.000 r/min. a very plain cut surface. The seam image on Caneed series Automatic Seam Computer (Video Seam Monitors), and automatic seam measuring systems gets thereby very clear and improves measurement speed and reliability.
Technical data (changes reserved):
Sample can dia. : 45-260mm
Sample type : 2- and 3-piece cans. Also aerosol-cans
Saw blades: 80 x 22 x 0,5 mm , also available with 100 x 22 x 0,5 mm
Speed: approx. 1.000 r/min.
Power supply: 230 V; also available with 115 V motor
Dimensions: L370 x W340 x H200mm
Weight : 20kg
