SMM-300 Score Measure Microscope
Canneed tại vietnam - canneed SMM-300

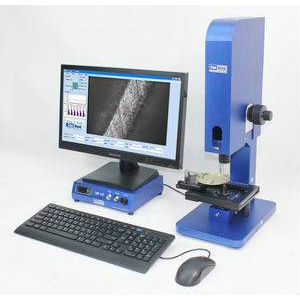

The CanNeed "SMM-300 Score Measure Microscope" adopted the microscope technology to measure the score depth and residue of can ends. Equip with the high definition CCD camera system, locating done by displaying the clear groove bottom image of the end score on the screen, the measurement data is accurate, reliable and reproducible. The end sample to be clamped on a two-dimensional platen, which is much easier for locating and measurement. The fine digital indicator which has a resolution of 1µm (0.001mm).
The measurement is accomplished by the focusing of microscope, if the microscope gets a very clear image, that means the focusing is correct, the height changing of the focus of microscope shows the depth of the end score. The diameter of nether measuring needle is very small, focusing on the top of the nether measuring needle, zero the indicator, place the sample end onto the platen, adjust the focus until gets the clear groove bottom image of the end score, then gets the score residue. Place the sample onto the platen, focusing on the surface of sample ends (edge of the score), zero the indicator, adjust the focus , when the clear groove bottom image displays on the screen, then gets the depth of score.
Attributes:
1) Lens working distance reaches 8.2mm, (working distance means the distance between the lens and object when focusing gets a clear image), well solved the biggish difference between end score position and end fringe of EO ends. Applicable for the score measurement of various kinds of can ends. Such as RP, SOT, EO, etc.
2) Adopted the fine optical components, ensured the high definition of images and data accuracy.
3) Applicable for various kinds of ends. Max. end diameter 110mm, bigger by order.
4) The advanced single lens reflex design, able to adjust the magnification continuously, convenience for the observation.
5) Fine micrometer and display, reaches 1 µm resolution, ensured the result accuracy.
6) Professional measuring software, with database management system, convenient for generating reports, data statistic and image storage.
7) Screen cross line function. Ensured the calibration point and measurement point superposed strictly.
8) Calibration piece. Users can do the calibration at any time.
9) The lifting measurement support, eliminate the deviation caused by the slope of sample ends.
Technical data:
Sample types : RP, SOT, EO
Measure range : 0-10mm
Resolution : 1μm（0.001mm）
Reproducibility : 2μm (0.002mm)
Lens working distance : 8 .2mm
Magnification : 1000 X
Dimensions : 250 x 300m x 600 mm
Weight : 15 kg
Consisting of:
1) SMM-300 Score Measure Microscope
2) SMM-300 data output module
3) CND_SMM1.0 measuring software
4) Calibration piece 0.5mm,1.0mm
5) Calibration clamp
Optional:
6) Laptop
