Cảm biến dòng CI cung cấp các ưu điểm của phép đo nhiệt độ hồng ngoại trong một cảm biến nhỏ gọn, chi phí thấp và
có thể dễ dàng thay thế các đầu dò tiếp xúc truyền thống bằng đầu ra cặp nhiệt loại J hoặc loại K,
hoặc với đầu ra 0-5V, khi được tích hợp vào tiêu chuẩn 4 -hệ thống dây.
| CI Series Compact IR Sensors | |

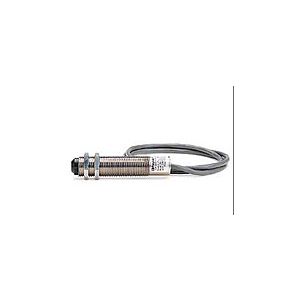

| RAYCI | Raytek Compact CI Infrared Pyrometer Series |
| RAYCI1B | Raytek RAYCI1B Infrared Temperature Sensor, Type J Output, 100 to 500°C (212 to 932°F) |
| RAYCI1A | Raytek RAYCI1A Infrared Temperature Sensor, Type J Output, 0 to 115°C (32 to 240°F) |
| RAYCI1A10L | Raytek RAYCI1A10L Infrared Temperature Sensor with 1 m Cable, Type J Output, 32 to 662°F (0 to 350°C) |
| Raytek RAYCI3A Infrared Temperature Sensor, 0-5VDC Output, 0 to 115°C (32 to 240°F) | |
| Raytek RAYCI3A50L Infrared Temperature Sensor with 15m Cable, 0-5VDC Output, 0 to 115°C (32 to 240°F) | |
| Raytek RAYCI3B Infrared Temperature Sensor, 0-5VDC Output, 100 to 500°C (212 to 932°F) | |
| Raytek RAYCI2A Infrared Temperature Sensor, Type K Output, 0 to 115°C (32 to 240°F) | |
| Raytek RAYCI2B Infrared Temperature Sensor, Type K Output, 100 to 500°C (212 to 932°F) | |
| Raytek RAYCI2B10L Infrared Temperature Sensor with 3m Cable, Type K Output, 100 to 500°C (212 to 932°F) | |
| Raytek RAYCI2B50L Infrared Temperature Sensor with 15m Cable, Type K Output, 100 to 500°C (212 to 932°F) | |
| Raytek RAYCI3A10L Infrared Temperature Sensor with 3m Cable, 0-5VDC Output, 0 to 115°C (32 to 240°F) | |
| ACCESSORIES FOR CI SERIES | |
| XXXCIACWC | CI Water-cooled Housing Only (For units with high temperature cable) |
| XXXCIACMN | Mounting nuts (2) |
| XXXCIACMNM | Metric Mounting nuts (2) |
| XXXCIACFB | Fixed bracket |
| XXXCIADJB | Adjustable bracket |
| XXXCIAP | Air Purge Collar (aluminum) |
| XXXCIACAP | Air Purge Collar (stainless) |
| XXXCIACAPM | Metric Air Purge Collar for metric threaded housing |
| XXXCIACRA | Right angle mirror (Not For Use With Water Cooled Option, (product not available in metric) |
| XXXCIDCPS | DIN mount 24VDC, 125mA switching power supply (110/220V input) |
| XXXCI1CON | Thermocouple cable extension connector kit for CI1 model |
| XXXCI2CON | Thermocouple cable extension connector kit for CI2 model |
| RAYGPC | Panel mount meter and power supply 110/220VAC for CI |
| CI LOW TEMP EXTENSION CABLES (maximum ambient 105°C, 220°F) | |
| XXXCI1CB50 | Extension cable for CI1; 15 meter (50 feet) |
| XXXCI1CB100 | Extension cable for CI1; 30 meter (100 feet) |
| XXXCI1CON | XXXCI1CON,T/C EXTENSION CONN. KIT FOR CI1 MODEL |
| XXXCI2CB50 | Extension cable for CI2; 15 meter (50 feet) |
| XXXCI2CB100 | Extension cable for CI2; 30 meter (100 feet) |
| XXXCI2CON | XXXCI2CON,T/C EXTENSION CONN. KIT FOR CI2 MODEL |
| XXXCI3CB50 | Extension cable for CI3; 15 meter (50 feet) |
| XXXCI3CB100 | Extension cable for CI3; 30 meter (100 feet) |
| CI HIGH TEMP EXTENSION CABLE FOR USE WITH ALL CI1, CI2, & CI3 UNITS (maximum ambient 260˚C, 500˚F) | |
| XXXCIACCB50H | High temperature cable; 15 meter (50 feet) (260° C; 500° F) |
| XXXCIACCB100H | High temperature cable; 30 meter (100 feet) (260° C; 500° F) |
| MI3 Series Miniature Infrared Sensors | |
| STANDARD MI3 SERIES LOW TEMPERATURE SENSING HEADS | |
| RAYMI310LTS | -40 to 600°C (-40 to 1112°F), 8 - 14 µm, 10:1, 130 msec, 1m cable |
| RAYMI320LTS | 0 to 1000°C (32 to 1832°F), 8 - 14 µm, 22:1, 130 msec, 1m cable |
| RAYMI302LTS | -40 to 600°C (-40 to 1112°F), 8 - 14 µm, 2:1, 130 msec, 1m cable |
| FAST RESPONSE MI3 SERIES LOW TEMPERATURE SENSING HEADS | |
| RAYMI310LTF | 0 - 1000°C (32 - 1832°F), 8 - 14 µm, 10:1, 20 msec, 1m cable |
| 5 MICRON SENSING HEADS FOR GLASS APPLICATIONS | |
| RAYMI310G5S | 250 to 1650°C, 5 µm, D:S 10:1, 130 msec, 1m cable |
| HIGH AMBIENT MI3 SERIES SENSING HEADS LOW TEMPERATURE SENSING HEADS | |
| RAYMI310LTH | -40 to 600°C, 8 to 14 µm, D:S 10:1, 130 msec, 1m cable |
| RAYMI320LTH | 0 to 1000°C, 8 to 14 µm, D:S 22:1, 130 msec, 1m cable |
| Raytek RAYMI310LTSCB8 Infrared Temperature Sensor with 8m Cable, 10:1 Optics, -40 to 600°C (-40 to 1112°F) | |
| Raytek RAYMI310LTSCB15 Infrared Temperature Sensor with 15m Cable, 10:1 Optics, -40 to 600°C (-40 to 1112°F) | |
| Raytek RAYMI310LTSCB3 Infrared Temperature Sensor with 3m Cable, 10:1 Optics, -40 to 600°C (-40 to 1112°F) | |
| Raytek RAYMI302LTSCB30 Infrared Temperature Sensor with 30m Cable, 2:1 Optics, -40 to 600°C (-40 to 1112°F) | |
| XXXMI3CERT | Calibration is traceable to the International System of Units (SI), through National Metrological Institutes such as NIST (order as a separate line item) |
| SYSTEM EXPANSION ACCESSORIES | |
| XXXMI3CONNBOX | Multi-channel sensor interface box for MI3 and MI3M series communications modules. Includes 8 sets of field wiring terminals wired in parallel to one 5 meter (16.4') cable to connect to MI3 or MI3M communications module. |
| XXXUSB485 | USB to RS232/422/485 converter |
| RAYMI3COMMI | Installation of MI3 sensing head with MI3/MI3M communications box |
| MECHANICAL ACCESSORIES | |
| XXXMIACMN | Sensing head mounting nuts - 5 pieces |
| XXXMIACFB | Sensing head fixed mounting bracket |
| XXXMIACAB | Sensing head adjustable mounting bracket |
| XXXMIACAJ | Air purge jacket (no cooling) - For use in ambient temperatures <200°C (<392°F). |
| XXXMIACAJI | Air purge jacket (no cooling) - installed, for MI3xxLTH only possible option - For use in ambient temperatures <200°C (<392°F). |
| XXXMIACCJ | Air cooling and purging system with .8m (2.8') insulated air hose. For use in ambient temperatures <200°C (<392°F). Not compatible with MI3LTH. |
| XXXMIACCJ1 | Air cooling and purging system with 2.8m (9.2') insulated air hose. For use in ambient temperatures <200°C (<392°F). Not compatible with MI3LTH. |
| XXXMIACRAJ1 | Right angle mirror with air purging systems. For use in ambient temperatures <200°C (<392°F). Not compatible with MI3LTH. |
| XXXMIACRAJ | Right angle mirror for use with air cooling and purging systems. For use in ambient temperatures <200°C (<392°F). Not compatible with MI3LTH. |
| XXXMIACPW | Zinc Sulfide protective window for MI sensors. Not for use with air purging or air cooling systems. |
| XXXMI3ACPWP | Polymer protective window for MI3 sensors. Not for use with air purging or air cooling systems. |
| XXXMI3ACCFL | MI3 Close Focus Lens Accessory, 10mm focus distance. LT models only. |
| D82MIACAJ | Stainless steel air purge jacket (no cooling) - For use in ambient temperatures <200°C (<392°F) |
| XXXUSBCABLE | USB cable assembly, 4 COND, USB-A(M), USB-MINI-B(M), Shielded, 2M |
Raytek RAYCI THÔNG SỐ KỸ THUẬT
| Spectral Response | 7 to 18 μm |
| Temperature Range | 32 to 932°F (0 to 500°C) |
| Optical Resolution | 4:1 |
| System Repeatability | ±1% of measured value or ±1°C (2°F), whichever is greater |
| Temperature Resolution | <1°F or 0.5°C |
| Response Time (95%) | 350 mSec |
| Emissivity | Fixed at 0.95 |
| Outputs | User-selectable thermocouple output (model specific, either J or K) or voltage output 10 mV/°C |
| Cable Length | 3.2' (1 m) standard, longer cables optional |
| Output Impedance | 50 Ω |
| Minimum Load Impedance | 50 KΩ |
| Power Supply | 12 to 24 VDC (≤2.5% ripple) @ 20 mA |
| Environmental Rating | IP65 (NEMA-4) |
| Ambient Temperature Range | 32 to 160°F (0 to 70°C) With air cooling: 32 to 200°F (0 to 90°C) With water cooling: 32 to 500°F (0 to 260°C) |
| Storage Temperature | -22 to 185°F (-30 to 85°C) |
| Relative Humidity | 10 to 95%, non-condensing |
| Shock | IEC 68-2-27 (MIL STD 810D) 50 g's, 11 mSec, any axis |
| Vibration | IEC 68-2-27 (MIL STD 810D) 3 g's, any axis, 11–200 Hz |
| Weight | 4.5 oz (130 g) |
